Courses - Microsoft Access 310
Description: Advanced Access
Running Time: 108 minutes
Pre-Requisites: Access 309 very strongly recommended
Previous Lesson: Access 309
Next Lesson: Access 311
Main Topics: Conditional Formatting, Payments on Orders, DSUM, Modal, Popup, If/Then
Versions: This course is valid for Access 2000 through 2003. If you are using Access 2007 or 2010, you will still benefit from this course. You will find that the concepts are the same, but there are cosmetic differences between the versions.



Order before 1/20/2017 to get a FREE upgrade to our Access 2010 version!
Click here for details

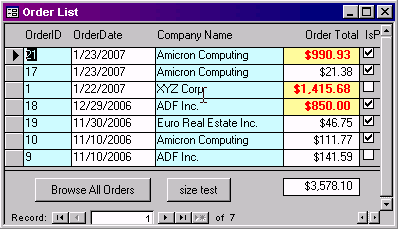

Access 310 starts off by covering Conditional Formatting, where you can change the format of a field for each record based on the data within the field.



Next, we're going to learn how to resize our forms (height and width) using VBA code.

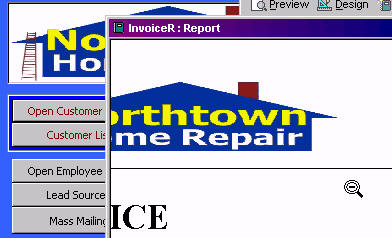

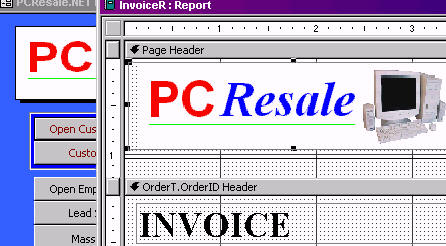

In lesson three, I'm going to teach you how to take your company logo that is on several different forms and reports, and move it into a table. The benefit is that you won't have to duplicate the logo in multiple places if it ever needs to change, and it will save space in your database (images take up a lot of space).



We'll also create a Settings table and form for different company settings (name, address, etc.) that we can look up for our forms and reports.



Now we can easily change that logo throughout our database by simply pasting it in our Company Settings form.

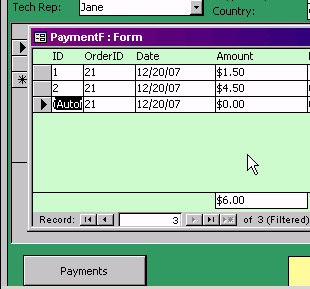

Next, we'll start tracking Payments for each order. We'll need a payment table and form, and then a button on our order form to show all of the payments for the current order.



This lesson will teach you about the DSUM function to add up all of the values in a different table (like all of the payments for the current order). I'll also show you the Modal and Popup properties for forms so a form stays on top of other forms - and so your users have to close the current form before they can click on anything else behind it.

Next, we'll calculate the amount due on the order, but to do that we'll have to learn how to read the order total off of the subform. This isn't easy to do. I'll show you the correct notation for it. Yes, the grey area below is the subform. Payments is calculated with DSUM, and AmountDue is just math, but it has to read the OrderTotal.



In lesson six, we'll use the MsgBox function to return a yes or no value. We'll do this specifically to warn the user if an invoice is already marked PAID and they try to put a payment on it - an "are you sure" event.

We will do more with If/Then statements and learn more about VBA programming logic. We'll also learn about the BeforeUpdate event which is very similar to AfterUpdate, except BeforeUpdate allows you to do things before the data is written to the table - like cancelling the event!

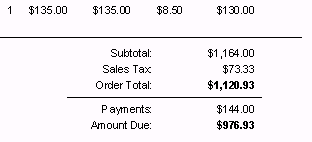

Next, we'll put the Payments and AmountDue on the Invoice report. We'll put some VBA code in the build event of the section to hide the Payments field and label if there are no payments.



We've learned about the CanGrow / CanShrink properties before, but what do you do when you have labels on your form? They can't grow or shrink automatically. I'll show you how to deal with that.

Next, we'll have the database notify us if enough payments have been received on an order to mark it paid - when we close the payments form. Of course, more VBA code in an event.

Finally, we'll fix our Accounts Receivable report, because that was built before the database handled payments - we want it to accurately reflect the amount due on an invoice.




ACCESS 310 - Course Outline

0. Introduction - 4:33

1. Conditional Formatting in Forms - 5:05
Changing form field formatting based on data

2. Resizing a Form with VBA - 6:58
Using Visual Basic code to resize forms when they open
Me.InsideHeight, Me.InsideWidth
What are Twips

3. Company Settings Table, Part 1 - 11:23
Moving our company logos from forms/reports into table
Benefits: easily changed, saves space
Creating a company settings table
Locked Property
Inserting a Bound Object Frame in a report
DLOOKUP in a report object control source

4. Company Settings Table, Part 2 - 7:17
Closing one form when another one opens
DoCmd.Close
OnClose Event
When an open record on one form locks another
Using DLOOKUP to get other values from company settings
Changing the form caption property
OnOpen Event for a form
Me.Caption

5. Tracking Payments, Part 1 - 21:31
Payment table and form (PaymentT, PaymentF)
Button on order form to show payments for current order
DoCmd.GoToRecord acNewRec to go to a new record
Using DSUM() to add up all of the payments for an order
How is DSUM different from DLOOKUP
Popup and Modal properties for a form
Refreshing the records on a different form
Forms!OrderF.Refresh and Me.Refresh
Calculating the amount due on an invoice
Accessing a value on a subform
Forms!OrderF!OrderSubform.Form!OrderTotal

6. Tracking Payments, Part 2 - 15:19
Warning users not to make a payment if invoice is PAID
vbExclamation
vbYesNo+vbExclamation
Creating a new value called MyReply in VBA Code
Exit Sub
Option Explicit
Explicitly declaring variables
Using DIM to create your own variables
Adding more logic - don't allow a payment if it's a QUOTE
Using the BeforeUpdate Event
Don't allow a user to change an invoice to a quote if PAID
Cancelling a BeforeUpdate Event
Don't allow a user to mark a QUOTE as PAID
Don't allow a user to put payments on a Quote
Refreshing the form record before printing an invoice
Putting payments and amount due on the Invoice report: DSUM
When [OrderT].[OrderID] doesn't work use [OrderT.OrderID]

7. Tracking Payments, Part 3 - 18:28
Putting payment info on Invoice report
Hiding the payments field and label if there are no payments
OrderT.OrderID Footer Section Build Event
GroupFooter1_Format section
Invalid Use of Null
What to do if there are no payments?
On Error Resume Next
If IsNull(Field) Then
Hiding a line
Creating a "fake" amount due for orders with no payments
Getting rid of empty space for invisible fields
Labels don't have CanGrow or CanShrink properties
Changing labels into text boxes with ChangeTo
Making the label caption into a control source
Hiding the payments and amount due if the invoice is paid
Hiding the amount due if it's a quote

8. Tracking Payments, Part 4 - 12:14
Having the database notify us if enough payments received
Do you want to mark this invoice PAID?
vbQuestion
Notify the user if the customer has overpaid
Fixing our accounts receivable report
Adding the total payments to accounts receivable: DSUM

9. Review - 5:27





Student Interaction: Microsoft Access 310

Richard on 1/1/2008:  Access 310 covers Conditional Formatting; resizing forms using VBA code; making a Company Settings table to put things like your logo and other info in there ONCE instead of throughout the database; tracking Payments for orders; the DSUM function; Modal and Popup form properties; calculating the amount due on an order; using MsgBox to return a value of vbYes or vbNo; the BeforeUpdate event; how to deal with labels that won't CanShrink properly; fixing the Accounts Receivable to account for payments.
michael haag on 1/5/2008: 310 lesson 02 Resize Form VBA has some sound difficulties. The sound is very low.
Richard Rost on 1/6/2008: Yes, I did notice that the sound on the lessons in this class is real low. I'll have to recompile the videos and try to jack the volume up. In the mean time, just adjust the sound of your computer system or Windows Media Player accordingly. Sorry about that.
Alan Hill on 1/6/2008: I took a break and played a couple of games for a few months. I was very surprised to find not one but four new lessons available. Thanks Richard. Time to put the games away and concentrate on the lessons at hand. Thanks for the discount. No dithering I jumped right in
and purchased them.
Regards Alan Hill

PS This has got to be the easiest way to learn Access

Richard Rost on 1/7/2008: Thanks for the compliments, Alan. Hope you enjoy them.
Richard Rost on 1/9/2008: Hey everyone, it's:
SURVEY TIME!
Don't forget after this lesson to go and take the SURVEY for this course!

Alan Hill on 1/10/2008: I was interested to see when you could not find the correct tab. You found model on the OTHER tab. Wait till you start to use Access 2007 they have moved stuff in the properties window. It drives me nuts, I keep wanting to go back to Access XP. BUT I know it's no good going back eventually I will have to get familiar with it. I became aware of some little tricks I had not realized before with this lesson. Thanks

Regards Alan Hill

Alan Hill on 1/10/2008: I did not know there was a reset button right in front of me. Little things.
michael haag on 1/12/2008: Really enjoyed the company settings 1&2 tutorials. That seems much easier and more efficient than having lots of graphics stored in different forms and reports.
Walter Pohle on 1/19/2008: Is there any way to postion
forms to a certain section on the screen

Richard Rost on 1/23/2008: Generally when you save a form, Access remembers its position. There is a way to manipulate the form's position with VBA code. I'll show that in a future lesson. It's not as easy as with a form in Visual Basic 6 where you can just say FormName.TOP = X and FormName.LEFT = Y. There's a bit more to it than that.
John  Brandrick on 2/21/2008: I notice the resize settings on the TaskListF only work when the main form is not maximized. Can it be made to work when the main form is set to maximum?
Richard Rost on 2/28/2008: Once you have ANY form maximized, any other forms that are opened will maximize too. You can get around this with a DoCmd.Restore command in the form's OnOpen event.
 Mario Toscano on 5/17/2008: Just wanted to know if a Jpeg format graphic could be used as the ole object. I have had problems in the past with jpeg photos and was forced to do a bmp conversion in order for them to work in access 2003
Richard Rost on 5/24/2008: Mario, you should be able to use JPG, GIF, and BMPs in your Access databases.
John Orem on 1/3/2009: In Access 310 around the 8 minute mark you show how to put some VBA code that pops up a MsgBox and prevents users from changing the toggle button from an invoice to a quote if the order is paid. Then similar validation with the IsPaid check box if the order is a quote. In both cases the code seems to do its job but if I click on any other part of the form the MsgBox pops back up and does not let me out of the routine. If I try to close the form eventually I get a message that states “You can’t save this record at this time.” Although I compared my code against yours about 25 times I am sure I must have done something incorrect…
Richard Rost on 1/20/2009: John, I tried and cannot reproduce your error. Can you send me your form? Just delete everything else out of the database except the form and its underlying table (you can delete the data). Email it to richard.rost[at]amicron.com and put in the subject line: [599CD] along with an explanation of what the problem is again (because I'll forget). :)
Yoshiko on 2/26/2009: I have the same error with John Orem. Msgbox pops up until I press ESC key. Maybe,it causes that OrderF is stil under editing after I click a checkbox or a toggle button and even click OK button on Msgbox shown. How can I cancel editing of OrderF?
Richard Rost on 2/26/2009: That's very strange. I can't get my database to replicate the problem you are both experiencing. You can cancel any running VBA code by pressing CTRL-BREAK, but I'm still trying to figure out why this is occurring.
Ray McCain on 3/12/2010: Access 310 Lesson 6 14:00
When I added the total payments field to InvoiceR I received the same SQL message with you received in that OrderID could refer to more than one table.Changing total payments to show OrderT.OrderID did not make the error message go away. The invoice detail already showed OrderT.Order ID, as did the OrderT.OrderID header and footer. Is there an additional error that needs to be corrected.

Reply from Richard Rost:

Specifying the table name should make that error message go away. You couldn't have more than one OrderT.OrderID on your report. I'd need to see the report to tell you exactly what's going on. Try starting over from scratch.

Ray McCain on 3/28/2010: Access 310, Lesson 6, 14:25

When I added payments to InvoiceR, the error message indicated that OrderID could have more than one reference. To fix this problem it was necessary to make the control look like: =DSum("PaymentAmount","PaymentT", "OrderT.OrderID=" & [OrderT.OrderID]. This stopped the error message.

Reply from Richard Rost:

Very good, Ray. Yes, that is necessary if you have more than one reference to OrderID in your underlying query. You could also resolve the problem by removing one of the OrderID's from your query. You don't need two of them.

Dana on 2/16/2011: Hi Richard, I have enjoyed all of your Access courses to date and have learnt a ton ! I have not had any trouble up until today. I am using access 2007 (if this makes a difference). I am stuck in the BeforeUpdate Event Sub for the Toggle (Invoice/Quote). Believe John Orem and Yoshiko experienced same issue( Course Link -Access 310) I am following your Handbook page 71 of 107. Basically the sub does not appear to Exit nor accept the Cancel = 1 (or – 1 or true) , the sub appears Once the(Invoice/Quote) toggle is clicked . Pressing Esc key or Closing the form appears to be the only way out.

Reply from Richard Rost:

I remember this. I could not replicate the error on my end. Can you send me a copy of your database? ZIP it up and email it to richard.rost@amicron.com.

ellesha on 3/22/2011: Hi Richard,

310 is really a very helpful tutorial, I managed to get my subform SUM to show in my MainForm easily by following the instruction given in your tutorial.

However, when my subform SUM is null, my MainForm textbox will show #Error. How can I stop this #Error msg by telling access to show,"0"?



Reply from Richard Rost:

I cover this in a future class. You can use the NZ() function to substitute a ZERO value for NULL.

Jose A. Galicia on 7/6/2011: Hi, Richard your tutorials are really awesome.
I have a question related with course 310,
6.Tracking Payments 2
8:15 Video Time
Inside the Before Update event of (IsQuoteToggle) and(IsPaid) the variable Cancel=1 doesn't cancel the Subroutine, when I click any of these objects the messagebox appears and the subroutine doesn't exit until I close the form with another message "You can't save the record....".
I've checked comments and other guys (Dana) have the same problem. I appreciate if you have other solution or advice Thank you.

Jim Upton on 8/3/2012: Really enjoyed the company settings 1&2 tutorials. That seems much easier and more efficient than having lots of graphics stored in different forms and reports. I am abit behind on these Videos but it was a Excellent watch
Sandra Bischler on 12/12/2012: Hi, I have a problem when I try to enter the DSUM-code directly into the source Control of the "TotalPayments" text box. I get this error message saying that the code is not valid and that I am trying to enter a code without an opreator. What does that mean? I use Access 2007 if that makes a diffrence? If I use a button and a VBA-code it works just fine, but then I have to update all the time.....I also get the same massage trying to enter the code from course 305 video 1 (Acts Rcvb 1) into the query.(As you do on the video). Whats wrong?

Reply from Richard Rost:

I haven't tested this code specifically, but everything that works in 2003 like this should work fine in 2007 and 2010. I use this technique all the time. What's the EXACT formula you're putting in the Control Source?

Joni Moore on 8/27/2013: Time Stamp: 4:55. Maybe it's because I'm using Access 2010, but when I try dragging and dropping a jpg file into the CompanyLogo object, it doesn't go into the object - it just creates a new unbound object onto the form. I've also tried copying/pasting from MS Paint too, but it keeps doing it the same way. What am I missing?

Reply from Richard Rost:

Are you in Design View? Switch to Form View.

Joni Moore on 8/27/2013: Whoops - spoke too soon. I figured it out - I was in design view when I kept trying to paste it.
:-)

Reply from Richard Rost:

:)

James Gray on 9/29/2013: Rick,

I came back to this video to see if there was a way I could reference meeting minutes that were transcribed and saved as a PDF file. The only way I could see to do this was via a field in my meeting table with the data type "
Attachment". This method just references the PDF file and doesn't actually open it in the database. Is there a way to have this file actually be visible in the meeting table/form? I don't see a way to import a PDF file, only able to export data in this format.

Reply from Richard Rost:

Office isn't really that good at importing PDF. There are conversion utilities out there that can convert PDF to Text (even Word can do that) and then you could save that text in your database if you want to be able to search it.

Alan L on 7/12/2014: I am experiencing this same issue. I tried deleting the code and the events (off the form) and did everything over and I still have the same problem. Using Access 2013.

Private Sub IsQuoteToggle_BeforeUpdate(Cancel As Integer)
If IsPaid Then
MsgBox ("You can't mark this as a quote because the invoice is already paid")
Cancel = 1
End If
End Sub


In Access 310 around the 8 minute mark you show how to put some VBA code that pops up a MsgBox and prevents users from changing the toggle button from an invoice to a quote if the order is paid. Then similar validation with the IsPaid check box if the order is a quote. In both cases the code seems to do its job but if I click on any other part of the form the MsgBox pops back up and does not let me out of the routine. If I try to close the form eventually I get a message that states You can't save this record at this time.

Emad on 2/18/2016: Hello, I notice something strange, if I put this in the Payment in the OrderID Filed as the Default =[Forms]![OrderF]![OrderID]
The Default Value is working only if the OrderF is Open, but if it is not Open I see #Name! or Error!. So, what I mean the Path is working only if the Order form is open.
Is this Correct?

Reply from Alex Hedley:

Yes this is correct, you are asking Access to put in the OrderID from the OrderF, if it's not open Access can't know what record is selected because there isn't one there

Meir K on 5/15/2016: i find that the only solution to get out of the sub after the message pops up, is to put in a IsQuoteToggle.undo, and the same by is paid you have to put IsPaid.undo, after cancel = 1.
Cheryl Hokanson on 8/11/2016: Lesson 310 2
My forms fill the whole screen. In the form test it was Height 9150 and Width 20590. I used your Height 2790 and Width 5620 in Resize Me. It didn't change the size.
Puzzled, Cheryl

Reply from Alex Hedley:

See this glossary item.
