Use Conditional Format

Mark Pierce

3 years ago

Is it possible to use conditional formatting to change text color in that specific record only based on specific conditions from a form field?

What I need to do is:
Example:
For 4" pipe (Field [PipeOD] has 4" in it) the ID measurement is condition is +0.22 in is pass, -0.025 is fail. So, the conditional formatting turns the field text Red if out on range.

If a new form record is created and has 5" pipe (Field [PipeOD] has 5" in it) the ID measurement is condition is +0.55 in is pass, -0.050 is fail. So, the conditional formatting turns the field text Red if out on range.

Is it possible to set different conditions to a field based on what a specific file has in it?

I have the conditional format course, but I don't see how to do what I need to do.

	Kevin Yip @Reply 3 years ago

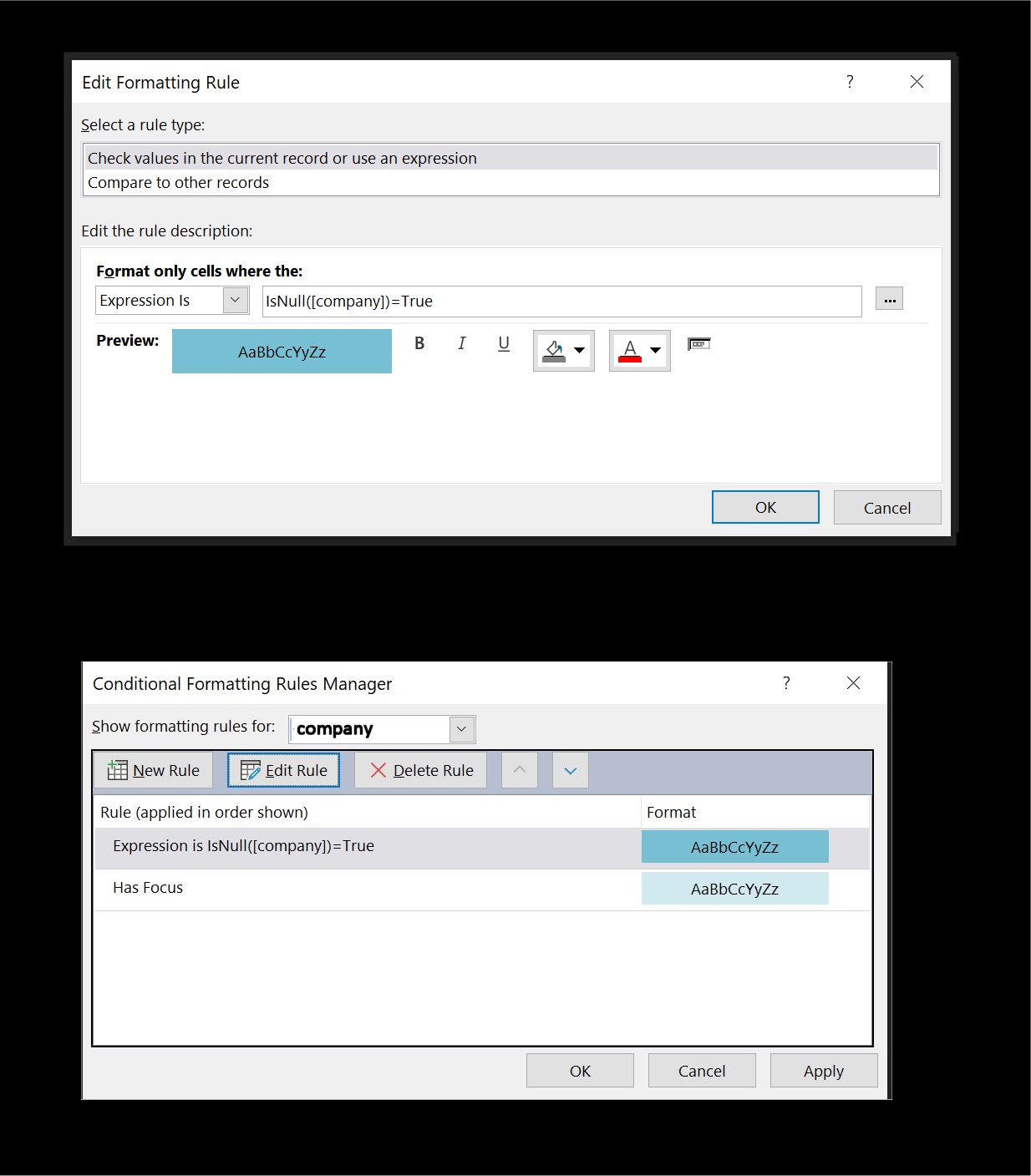

You can add a formatting rule that uses an "expression" as shown in the picture below. Type in an expression that will evaluate to either true or false. When it is true, the specified formatting will be used. For instance, an expression to test whether [PipeOD] contains 4" would be: InStr(1, [PipeOD], "4""") <> 0

	Kevin Yip @Reply 3 years ago

	Mark Pierce OP @Reply 3 years ago
Okay then after I set the expression to True for 4" pipe, I still need to set the condition of if it is between x and y then format red. How do you set a second condition based on a true prior condition result?

	Kevin Yip @Reply 3 years ago
You add a second condition with the AND operator. E.g.: InStr(1, [PipeOD], "4""") <> 0 AND (Something >= x AND Something <= y) If both of these conditions are true, i.e if PipeOD contains 4" and something is between x and y inclusively, then the specified formatting will be used.

	Mark Pierce OP @Reply 3 years ago
This is what it would look like but I am getting a invalid syntax error. =InStr(1,[Size_Write],"3-1/2""")<> 0 AND ([BoxThreadOvality],>=-0.003 AND <=+0.004)

	Kevin Yip @Reply 3 years ago
The second condition should be: ([BoxThreadOvality] >= -0.003 AND [BoxThreadOvality] <= 0.004) The correct syntax for such a condition is: Something >= x AND Something <= y It is not: Something >= x AND <= y

	Mark Pierce OP @Reply 3 years ago
Thanks very much Kevin, this is an area I struggle!

	Kevin Yip @Reply 3 years ago
You're welcome. Expressions are part of VBA. That may be why Richard didn't include this in his video for conditional formatting.

	Richard Rost @Reply 3 years ago
Fast Tip: Expression Is Course: Access Expert 19
