FormatConditions Limit

Ricky Houtris

3 years ago

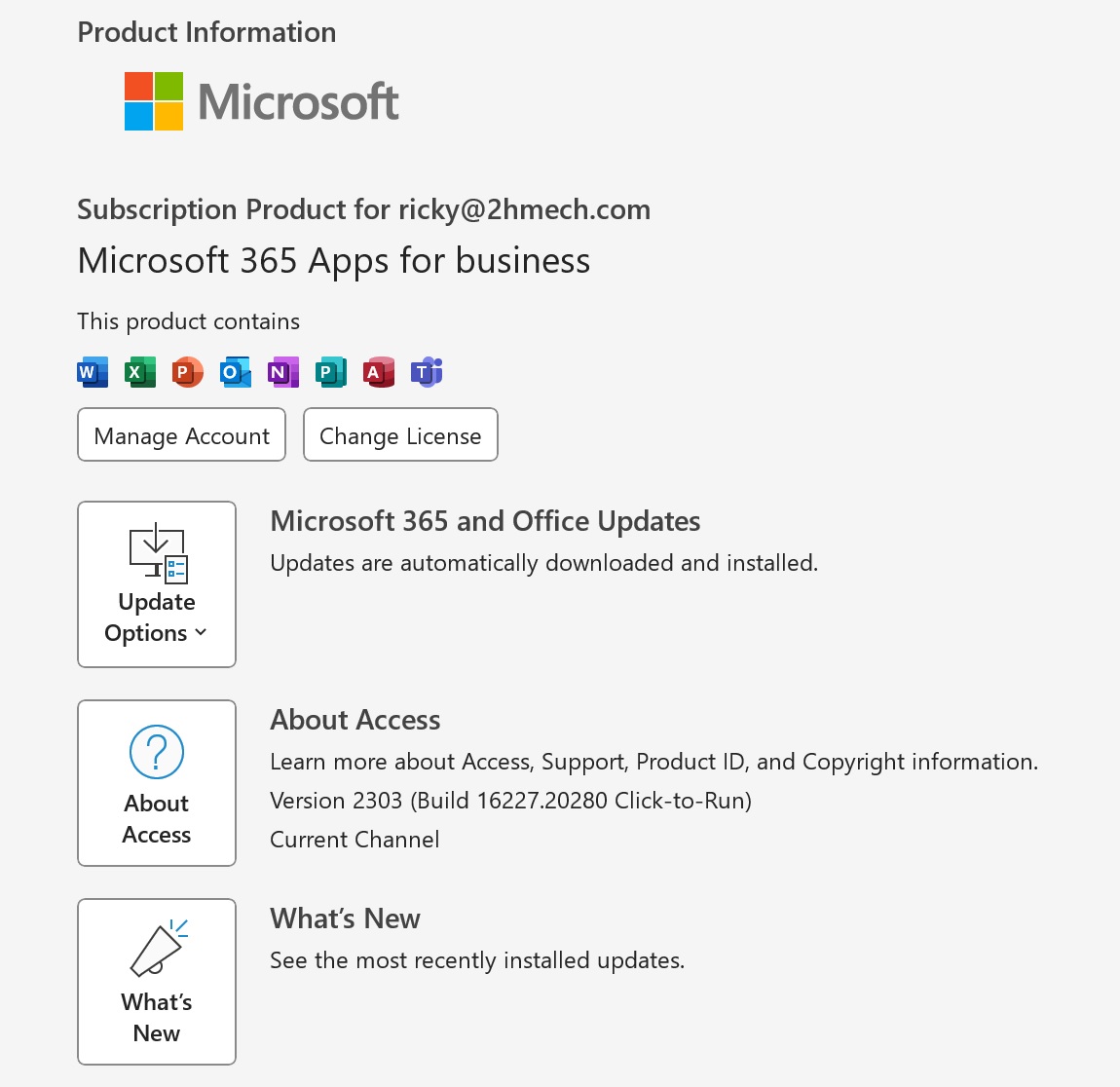

Watching Lesson 40, I assume that I could make more than 3 x=2 formatconditions. Unfortunately, I seem to be hitting the limit. What am I missing? I believe that my office 356 is fully up to ate.

Ricky

	Ricky Houtris OP @Reply 3 years ago

	Ricky Houtris OP @Reply 3 years ago

Kevin Yip @Reply

3 years ago

The max number of FormatConditions is 50, as the test in my first picture below shows.  It doesn't matter which 365 version.

But for reasons unknown to me, if any of the first 3 FormatConditions contains an invalid expression, it will give you the runtime error you are seeing.  You may have an invalid expression (cropped off in your picture) in one of the top 3 conditions.  The error occurs at FormatConditions(3) because (3) isn't created and doesn't exist, and that's why it says "the format condition number is greater than" what you have.

My testing, shown in my next two pictures below, shows this.  I entered some gibberish expression in the second condition, and it caused an error (and the same would happen if it was entered in the first and 3rd).  But if I entered the invalid expression in the fourth condition, nothing happened, even when invalid expressions existed elsewhere.  I have no idea why this happens.  You just have to make sure your top three entries are valid.

	Kevin Yip @Reply 3 years ago

Ricky Houtris OP @Reply

3 years ago

Sub BuildGantt()
Dim x As Long, y As Long, z As Long
Dim BoxName As String
Dim BoxStart As Date, BoxEnd As Date
Dim BoxLength As Double
Dim FC As FormatCondition

    z = 51 ' The number of boxes
    BoxLength = (GEnd - GStart) / z
    For x = 0 To z 'loop through the Gantt boxes and set the conditional formatting
        BoxName = "Gantt" & x + 1
        BoxStart = GStart + BoxLength * x
        BoxEnd = BoxStart + BoxLength
        Me.Controls(BoxName).FormatConditions.Delete
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Plumbing' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(0).BackColor = RGB(70, 0, 135)
        Me.Controls(BoxName).FormatConditions(0).ForeColor = RGB(255, 255, 255)
        Me.Controls(BoxName).FormatConditions(0).FontBold = True
        Me.Controls(BoxName).FormatConditions(0).Enabled = True
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Mechanical' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(1).BackColor = RGB(70, 100, 135)
        Me.Controls(BoxName).FormatConditions(1).ForeColor = RGB(255, 255, 255)
        Me.Controls(BoxName).FormatConditions(1).FontBold = True
        Me.Controls(BoxName).FormatConditions(1).Enabled = True
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Shop' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(2).BackColor = RGB(150, 20, 1)
        Me.Controls(BoxName).FormatConditions(2).ForeColor = RGB(255, 255, 255)
        Me.Controls(BoxName).FormatConditions(2).FontBold = True
        Me.Controls(BoxName).FormatConditions(2).Enabled = True
    Next x
End Sub

	Ricky Houtris OP @Reply 3 years ago

	Ricky Houtris OP @Reply 3 years ago
Thanks, Kevin, I cannot see an error, and it appears to be working fine, but I will keep looking. I attached the sub, in case you can see what I am missing. Ricky

Kevin Yip @Reply

3 years ago

You don't have an error because you don't have a 4th condition, i.e. FormatConditions(3). This error (bug?) only occurs if you have 4 or more conditions and any of the top 3 conditions has an invalid expression. In your code above, even if all 3 of your conditions contain gibberish expressions, it still won't cause an error. There needs to be a 4th condition for that to cause an error. The code you posted earlier did have 4 conditions, so an error occurred.

Ricky Houtris OP @Reply

3 years ago

z = 51 ' The number of boxes
    BoxLength = (GEnd - GStart) / z
    For x = 0 To z 'loop through the Gantt boxes and set the conditional formatting
        BoxName = "Gantt" & x + 1
        BoxStart = GStart + BoxLength * x
        BoxEnd = BoxStart + BoxLength
        Me.Controls(BoxName).FormatConditions.Delete
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Plumbing' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(0).BackColor = RGB(70, 0, 135)
        Me.Controls(BoxName).FormatConditions(0).ForeColor = RGB(155, 155, 155)
        Me.Controls(BoxName).FormatConditions(0).FontBold = True
        Me.Controls(BoxName).FormatConditions(0).Enabled = True
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Mechanical' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(1).BackColor = RGB(70, 100, 135)
        Me.Controls(BoxName).FormatConditions(1).ForeColor = RGB(155, 155, 155)
        Me.Controls(BoxName).FormatConditions(1).FontBold = True
        Me.Controls(BoxName).FormatConditions(1).Enabled = True
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Shop' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(2).BackColor = RGB(150, 20, 1)
        Me.Controls(BoxName).FormatConditions(2).ForeColor = RGB(155, 155, 155)
        Me.Controls(BoxName).FormatConditions(2).FontBold = True
        Me.Controls(BoxName).FormatConditions(2).Enabled = True
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Operations' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(3).BackColor = RGB(50, 20, 1)
        Me.Controls(BoxName).FormatConditions(3).ForeColor = RGB(155, 155, 155)
        Me.Controls(BoxName).FormatConditions(3).FontBold = True
        Me.Controls(BoxName).FormatConditions(3).Enabled = True
    Next x

	Ricky Houtris OP @Reply 3 years ago
All I am doing is adding other departments.

	Ricky Houtris OP @Reply 3 years ago
As I said before, the three conditions seem to work perfectly. I am not displaying values in the boxes yet, so I remove the FOreColor and FontBold lines to see if that changed anything. It didn't:(

Ricky Houtris OP @Reply

3 years ago

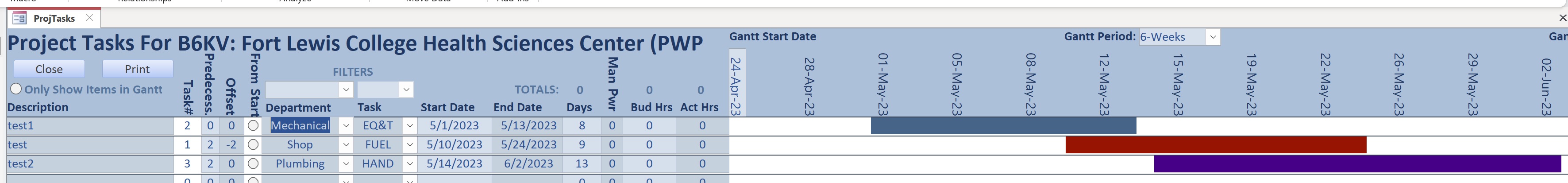

This works!

    z = 51 ' The number of boxes
    BoxLength = (GEnd - GStart) / z
    For x = 0 To z 'loop through the Gantt boxes and set the conditional formatting
        BoxName = "Gantt" & x + 1
        BoxStart = GStart + BoxLength * x
        BoxEnd = BoxStart + BoxLength
        Me.Controls(BoxName).FormatConditions.Delete
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acFieldValue, acEqual, 1000)
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acFieldValue, acEqual, 1001)
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acFieldValue, acEqual, 1002)
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Plumbing' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(3).BackColor = RGB(70, 0, 135)
        Me.Controls(BoxName).FormatConditions(3).ForeColor = RGB(155, 155, 155)
        Me.Controls(BoxName).FormatConditions(3).FontBold = True
        Me.Controls(BoxName).FormatConditions(3).Enabled = True
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Mechanical' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(4).BackColor = RGB(70, 100, 135)
        Me.Controls(BoxName).FormatConditions(4).ForeColor = RGB(155, 155, 155)
        Me.Controls(BoxName).FormatConditions(4).FontBold = True
        Me.Controls(BoxName).FormatConditions(4).Enabled = True
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Shop' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(5).BackColor = RGB(150, 20, 1)
        Me.Controls(BoxName).FormatConditions(5).ForeColor = RGB(155, 155, 155)
        Me.Controls(BoxName).FormatConditions(5).FontBold = True
        Me.Controls(BoxName).FormatConditions(5).Enabled = True
        Set FC = Me.Controls(BoxName).FormatConditions.Add(acExpression, acEqual, "[Dept] = 'Operations' And [StartDate] <= #" & Format(BoxStart, "MM/DD/YYYY") & "# And #" & Format(BoxEnd, "MM/DD/YYYY") & "# <= [EndDate]")
        Me.Controls(BoxName).FormatConditions(6).BackColor = RGB(50, 20, 1)
        Me.Controls(BoxName).FormatConditions(6).ForeColor = RGB(155, 155, 155)
        Me.Controls(BoxName).FormatConditions(6).FontBold = True
        Me.Controls(BoxName).FormatConditions(6).Enabled = True
    Next x
