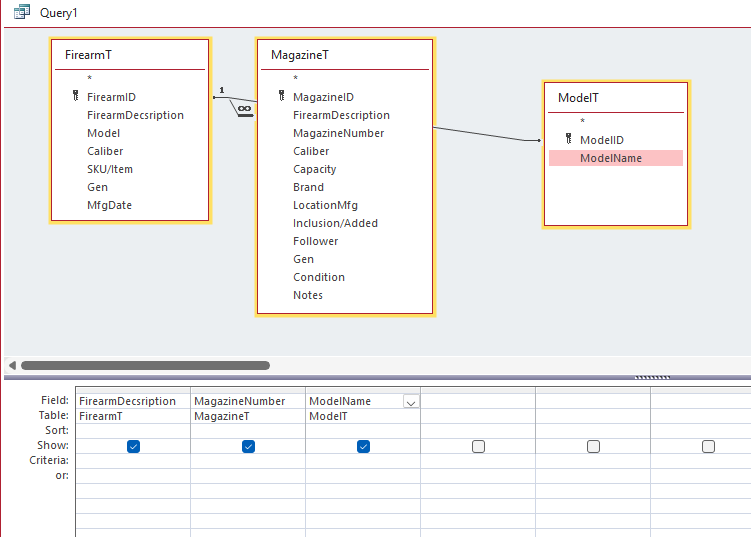

Show your query that is giving you trouble in design view.

From your description, may I ask why the firearm model is not stored in the firearm table?

Relationships
Lee try this maybe it will spark the mind try it and if still having problems let us know we can kick up some more and get you going on this.

V/r
Juan

Sami will show it momentarily. There are two reasons I created the Model Table. 1. Is there are so many different models, and also it can be used for other tables also so I dont have to put model in the other table. Such as there may one model for firearm and one model for magazine. So I dont have a model field in both tables and I can use the combo box elsewhere when needed. Be back shortly with the screenshot

Juan thank you am I about relationshiped out on the video. LOL

Your tables are missing the Foreign Keys.

Well maybe that is what I am not getting. Kevin, can you give me an example how to fix that on these tables? Maybe I will understand that then.

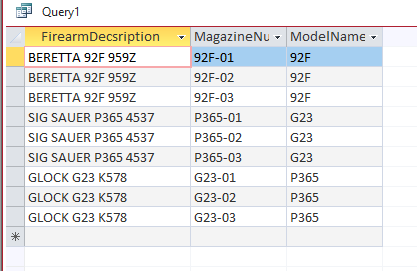

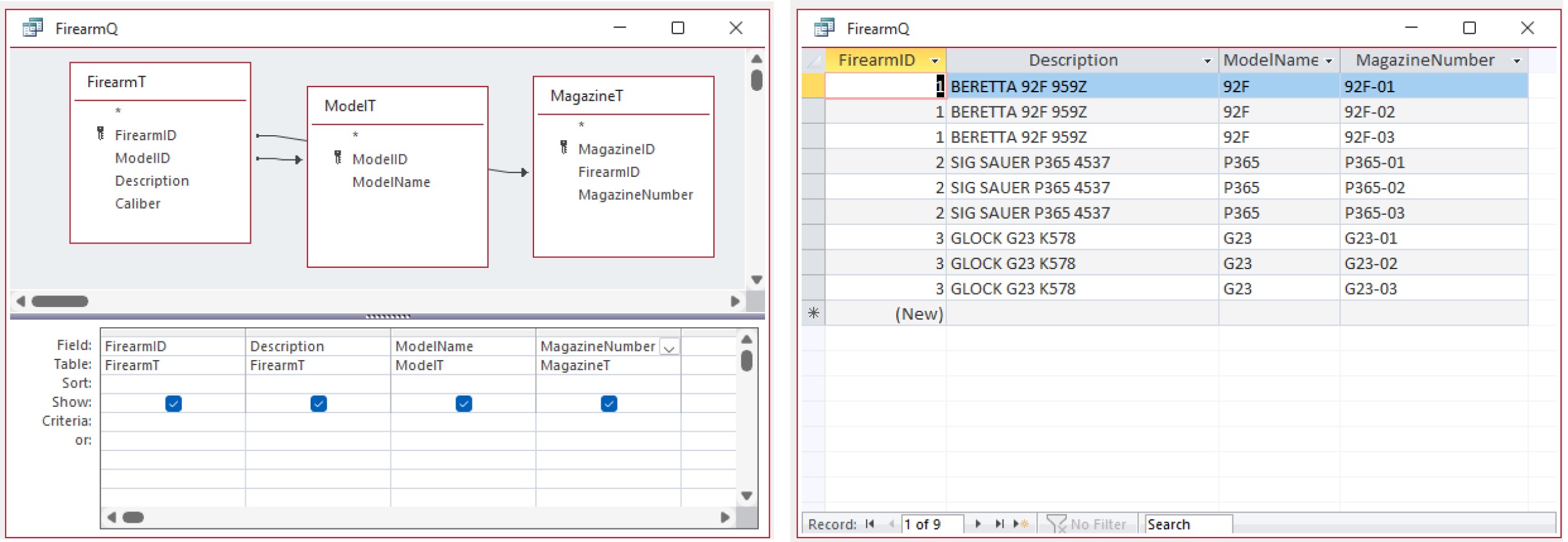

Your Query (with simplified Tables)

I think I see what's going on. I will play with it somewhere. I plan on adding fields to different tables but just one at a time to try and learn how things are working. Am I correct in the ModelID in the FirearmT should be NUMBER instead of SHORT TEXT? Thank you Kevin

Yes. You are correct. Related fields should be of the same Data Type.

Okay. Now I added this table and get no results when running a query. Added BrandT with BrandID BrandName and added a field in the MagazzineT as Brand ID. Snip will be here attached

See Missing Values. Check your join type.

Richard Thank you. I just watched that video after you stated to do it. I cant connect it to what's up with mine. That's why I am trying this stuff one step at time. I have watched so many videos and all and I just cant get it. I did the same thing that Kevin did to show me, and I chose all 3 Joins and still query comes blank blank. I guess I am going to have to take a physical class to understand it maybe. I dunno, I am confused for sure. Looks like back to excel. LOL

Lee, dont give up. You are very close. Blank results almost always mean an inner join is filtering everything out or the related IDs do not match.

Do this in order:

Make sure each lookup table has a Primary Key: ModelT.ModelID and BrandT.BrandID. Data Type = AutoNumber.

In the child tables, store the matching Foreign Keys as Number - Long Integer: FirearmT.ModelID and MagazineT.BrandID. The data types on both sides must match.

Put a couple of real rows in ModelT and BrandT, then set FirearmT.ModelID and MagazineT.BrandID to those IDs so we know there are matches.

Build the query starting from the table you want to keep all rows from. If you want all firearms, start with FirearmT. Use LEFT joins from FirearmT to ModelT, and from MagazineT to BrandT. LEFT join keeps rows even when the lookup is missing. Inner join will drop them.

In Relationships, join FirearmT.ModelID to ModelT.ModelID and MagazineT.BrandID to BrandT.BrandID, enforce referential integrity, then reopen the query and check the join arrows show LEFT joins where needed.

If it is still blank, remove one related table at a time until it returns data. The last table you added is the problem.

One design note: sharing a single Model table for both firearms and magazines can mix unrelated models. Either add a ModelType field (Firearm or Magazine) and make the combo boxes filter on type, or keep separate Model tables per thing. Both approaches work, but mixing types in one table without filtering will cause confusion.

Richard I will work with these instructions. Thank you very much. I can separate the model tables no problem. Actually I can do away with one for Magazines. Once again Thank you and I appreciate all who have helped and been patient with me.

Richard followed every step of your instructions and still can not get it to do anything. I can add Firearm, Model#, Magazine to the query and get results. When I add the Brand Table and choose the Brand Name field, I get a blank query. So I deleted the Brand Table in case it was corrupted and made a new one. BrandID and BrandName are the 2 fields. The ID is AutoNumber (Long Integer) and I set the BrandId in the MagazineT to Number(Long Integer).

Lee Not to be repetitive of what everyone else has said, but, when you re-added your Brand table and added it back to the query, did you make sure it was a left join (i.e. when you click on the adhoc relationship line to view the relationship properties, it should say something like "Show all records from MagazineT and only those records from BrandT that match")

Like in Kevin's image above, it will show the arrowhead pointing at the BrandT in the QBE Editor screen. Other than that, again, make sure that relationship line is going from the BrandID in the MagazineT box to the BrandID in the BrandT box. Sometimes that little line looks like it's going where it's supposed to but just in case make sure it didn't actually drop on the BrandName field.

Other than that, you'll need to provide an updated screen shot of your query window.

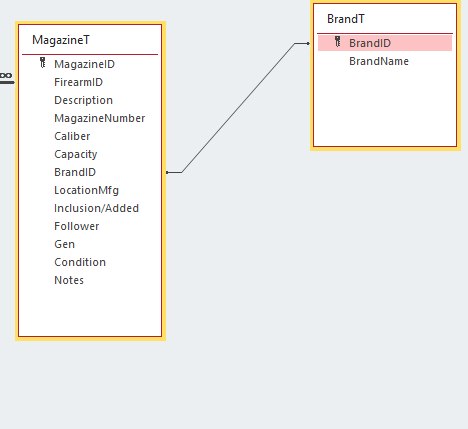

Donald Thank you for the fine pinpoint details. I need that sometimes. Here are the screen snips.

Scratch that idea Donald. I think I may have solved with yalls help. I will play with it some more over the weekend to make sure.

Thank you to all that has helped. I think I MAY have it now.

If not, we're here.

Yes thank you very much
